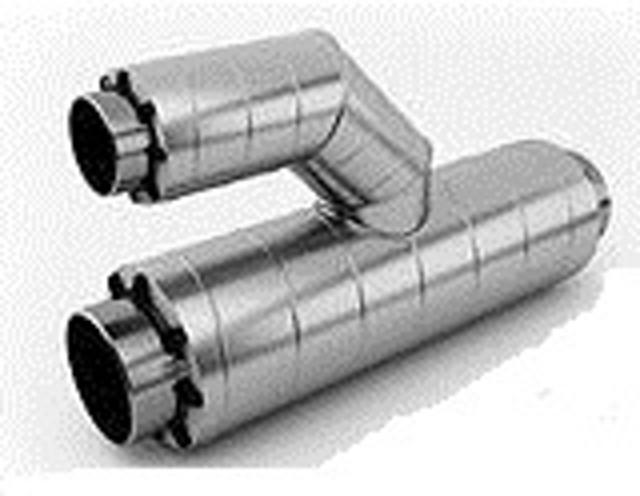

Описание
Размеры патрубка | Размеры ответвления | Н1, мм | Н, мм | L, мм | L1, мм | Масса, кг | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
dн, мм | Dн, мм | dн1, мм | Dн1, мм | |||||||||
Тип-1 | Тип-2 | Тип-1 | Тип-2 | Тип-1 | Тип-2 | Тип-1 | Тип-2 | |||||
57 | 125 | 140 | 57 | 125 | 140 | 150 | 275 | 290 | 1000 | 290 | окт.13 | окт.74 |
76 | 140 | 160 | 57 | 125 | 140 | 150 | 283 | 300 | 1000 | 290 | 12.июн | дек.65 |
76 | 140 | 160 | 150 | 290 | 310 | 1000 | 300 | 13.17 | 13.81 | |||
89 | 160 | 180 | 57 | 125 | 140 | 150 | 293 | 310 | 1000 | 290 | 13.59 | 14.30 |
76 | 140 | 160 | 150 | 300 | 320 | 1000 | 300 | 14.67 | 15.42 | |||
89 | 160 | 180 | 150 | 310 | 330 | 1000 | 330 | 15.94 | 16.82 | |||
108 | 180 | 200 | 57 | 125 | 140 | 150 | 303 | 320 | 1500 | 290 | 23.89 | 26.46 |
76 | 140 | 160 | 150 | 310 | 330 | 1500 | 300 | 24.95 | 27.57 | |||
89 | 160 | 180 | 150 | 320 | 340 | 1500 | 330 | 26.17 | 28.90 | |||
108 | 180 | 200 | 150 | 330 | 350 | 1500 | 370 | 28.79 | 32.21 | |||
133 | 225 | 250 | 57 | 125 | 140 | 150 | 325 | 345 | 1500 | 290 | 33.27 | 34.94 |
76 | 140 | 160 | 150 | 333 | 355 | 1500 | 300 | 34.35 | 36.06 | |||
89 | 160 | 180 | 150 | 343 | 365 | 1500 | 330 | 35.56 | 37.40 | |||
108 | 180 | 200 | 150 | 353 | 375 | 1500 | 370 | 38.10 | 40.64 | |||
133 | 225 | 250 | 150 | 375 | 400 | 1500 | 432 | 43.72 | 46.19 | |||
159 | 250 | 280 | 57 | 125 | 140 | 150 | 338 | 360 | 1500 | 290 | 38.66 | 40.69 |
76 | 140 | 160 | 150 | 345 | 370 | 1500 | 300 | 39.73 | 41.81 | |||
89 | 160 | 180 | 150 | 355 | 380 | 1500 | 330 | 40.94 | 43.15 | |||
108 | 180 | 200 | 150 | 365 | 390 | 1500 | 370 | 43.46 | 46.37 | |||
133 | 225 | 250 | 150 | 388 | 415 | 1500 | 432 | 48.89 | 51.74 | |||
159 | 250 | 280 | 150 | 400 | 430 | 1500 | 475 | 52.96 | 56.20 | |||
219 | 315 | 355 | 57 | 125 | 150 | 150 | 370 | 398 | 1500 | 290 | 63.07 | 66.01 |
76 | 140 | 160 | 150 | 378 | 408 | 1500 | 300 | 64.14 | 67.14 | |||
89 | 160 | 180 | 150 | 388 | 418 | 1500 | 330 | 65.34 | 68.48 | |||
108 | 180 | 200 | 150 | 398 | 428 | 1500 | 370 | 67.85 | 71.70 | |||
133 | 225 | 250 | 150 | 420 | 453 | 1500 | 432 | 73.24 | 77.06 | |||
159 | 250 | 280 | 150 | 433 | 468 | 1500 | 475 | 77.02 | 81.24 | |||
219 | 315 | 355 | 250 | 565 | 605 | 1500 | 600 | 99.53 | 105.40 | |||
273 | 400 | 450 | 57 | 125 | 140 | 150 | 413 | 445 | 2000 | 290 | 493.83 | 123.84 |
76 | 140 | 160 | 150 | 420 | 455 | 2000 | 300 | 119.36 | 125.00 | |||
89 | 160 | 180 | 150 | 430 | 465 | 2000 | 330 | 120.58 | 126.37 | |||
108 | 180 | 200 | 150 | 440 | 475 | 2000 | 370 | 123.12 | 129.64 | |||
133 | 225 | 250 | 150 | 463 | 500 | 2000 | 432 | 128.56 | 135.07 | |||
159 | 250 | 280 | 150 | 475 | 515 | 2000 | 475 | 132.35 | 139.29 | |||
219 | 315 | 355 | 250 | 608 | 653 | 2000 | 600 | 154.32 | 162.98 | |||
273 | 400 | 450 | 250 | 650 | 700 | 2000 | 720 | 180.97 | 191.91 | |||
325 | 450 | 500 | 57 | 125 | 140 | 150 | 438 | 470 | 2000 | 290 | 139.18 | 144.76 |
76 | 140 | 160 | 150 | 445 | 480 | 2000 | 300 | 140.27 | 145.91 | |||
89 | 160 | 180 | 150 | 455 | 490 | 2000 | 330 | 141.49 | 147.28 | |||
108 | 180 | 200 | 150 | 465 | 500 | 2000 | 370 | 144.03 | 150.54 | |||
133 | 225 | 250 | 150 | 488 | 525 | 2000 | 432 | 149.45 | 155.96 | |||
159 | 250 | 280 | 150 | 500 | 540 | 2000 | 475 | 153.22 | 160.15 | |||
219 | 315 | 355 | 250 | 633 | 678 | 2000 | 600 | 175.01 | 183.67 | |||
273 | 400 | 450 | 250 | 675 | 725 | 2000 | 720 | 200.42 | 211.36 | |||
325 | 450 | 450 | 300 | 750 | 800 | 2000 | 800 | 223.78 | 235.60 | |||
426 | 560 | 630 | 57 | 125 | 140 | 150 | 493 | 535 | 2000 | 290 | 189.85 | 200.43 |
76 | 140 | 160 | 150 | 500 | 545 | 2000 | 300 | 190.95 | 201.61 | |||
89 | 160 | 180 | 150 | 510 | 555 | 2000 | 330 | 192.17 | 202.99 | |||
108 | 180 | 200 | 150 | 520 | 565 | 2000 | 370 | 194.71 | 206.29 | |||
133 | 225 | 250 | 150 | 543 | 590 | 2000 | 432 | 200.14 | 211.76 | |||
159 | 250 | 280 | 150 | 555 | 605 | 2000 | 475 | 203.90 | 215.99 | |||
219 | 315 | 355 | 250 | 688 | 743 | 2000 | 600 | 225.62 | 239.58 | |||
273 | 400 | 450 | 250 | 730 | 790 | 2000 | 720 | 250.72 | 267.14 | |||
325 | 450 | 450 | 300 | 805 | 865 | 2000 | 800 | 272.30 | 289.70 | |||
426 | 560 | 500 | 300 | 860 | 930 | 2000 | 870 | 326.90 | 350.30 | |||
530 | 710 | 710 | 76 | 140 | 160 | 150 | 575 | 575 | 2000 | 300 | 269.70 | 269.95 |
89 | 160 | 180 | 150 | 585 | 585 | 2000 | 330 | 270.96 | 271.31 | |||
108 | 180 | 200 | 150 | 595 | 595 | 2000 | 370 | 273.56 | 274.57 | |||
133 | 225 | 250 | 150 | 618 | 618 | 2000 | 432 | 279.08 | 279.98 | |||
159 | 250 | 280 | 150 | 630 | 630 | 2000 | 475 | 282.91 | 284.15 | |||
219 | 315 | 355 | 250 | 763 | 763 | 2000 | 600 | 304.90 | 307.48 | |||
273 | 400 | 450 | 250 | 805 | 805 | 2000 | 720 | 330.21 | 334.67 | |||
325 | 450 | 500 | 300 | 880 | 880 | 2000 | 800 | 351.74 | 356.84 | |||
426 | 560 | 630 | 300 | 935 | 935 | 2000 | 870 | 403.50 | 413.91 | |||
530 | 710 | 710 | 300 | 1010 | 1010 | 2000 | 920 | 490.18 | 490.18 | |||
630 | 800 | 800 | 89 | 160 | 180 | 150 | 630 | 630 | 2000 | 330 | 316.87 | 317.22 |
108 | 180 | 200 | 150 | 640 | 640 | 2000 | 370 | 319.46 | 320.47 | |||
133 | 225 | 250 | 150 | 663 | 663 | 2000 | 432 | 324.95 | 325.85 | |||
159 | 250 | 280 | 150 | 675 | 675 | 2000 | 475 | 328.76 | 329.99 | |||
219 | 315 | 355 | 220 | 808 | 808 | 2000 | 600 | 350.62 | 353.20 | |||
273 | 400 | 450 | 250 | 850 | 850 | 2000 | 720 | 375.76 | 380.21 | |||
325 | 450 | 0 | 300 | 925 | 925 | 2000 | 800 | 397.11 | 402.21 | |||
426 | 560 | 630 | 300 | 980 | 980 | 2000 | 870 | 448.18 | 458.58 | |||
530 | 710 | 710 | 300 | 1055 | 1055 | 2000 | 920 | 529.37 | 529.37 | |||
630 | 800 | 800 | 350 | 1150 | 1150 | 2000 | 1000 | 601.67 | 601.67 | |||
720 | 900 | 900 | 108 | 180 | 200 | 150 | 690 | 690 | 2000 | 370 | 365.24 | 366.26 |
133 | 225 | 250 | 150 | 713 | 713 | 2000 | 432 | 370.76 | 371.65 | |||
159 | 250 | 280 | 150 | 725 | 725 | 2000 | 475 | 374.57 | 375.81 | |||
219 | 315 | 355 | 250 | 858 | 858 | 2000 | 600 | 396.48 | 399.07 | |||
273 | 400 | 450 | 250 | 900 | 900 | 2000 | 720 | 421.64 | 426.11 | |||
325 | 450 | 0 | 300 | 975 | 975 | 2000 | 800 | 442.96 | 448.07 | |||
426 | 560 | 630 | 300 | 1030 | 1030 | 2000 | 870 | 493.83 | 504.24 | |||
530 | 710 | 710 | 300 | 1105 | 1105 | 2000 | 920 | 574.21 | 574.21 | |||
630 | 800 | 800 | 350 | 1200 | 1200 | 2000 | 1000 | 640.15 | 640.15 | |||
720 | 900 | 900 | 400 | 1300 | 1300 | 2000 | 1080 | 721.77 | 721.77 | |||
820 | 1000 | 1100 | 133 | 225 | 250 | 150 | 763 | 825 | 2000 | 432 | 458.61 | 480.51 |
159 | 250 | 280 | 150 | 775 | 840 | 2000 | 475 | 462.42 | 484.83 | |||
219 | 315 | 355 | 250 | 908 | 978 | 2000 | 600 | 484.31 | 508.84 | |||
273 | 400 | 450 | 250 | 950 | 1025 | 2000 | 720 | 509.42 | 536.68 | |||
325 | 450 | 500 | 300 | 1025 | 1100 | 2000 | 800 | 530.68 | 559.06 | |||
426 | 560 | 630 | 300 | 1080 | 1165 | 2000 | 870 | 581.33 | 616.05 | |||
530 | 710 | 710 | 300 | 1155 | 1155 | 2000 | 920 | 661.09 | 687.01 | |||
630 | 800 | 800 | 350 | 1250 | 1250 | 2000 | 1000 | 725.67 | 752.64 | |||
720 | 900 | 900 | 400 | 1350 | 1350 | 2000 | 1080 | 799.36 | 827.34 | |||
820 | 1000 | 1100 | 400 | 1400 | 1500 | 2500 | 1200 | 1025.66 | 1093.14 | |||
920 | 1100 | 1200 | 159 | 250 | 280 | 150 | 825 | 890 | 2000 | 475 | 516.04 | 538.44 |
219 | 315 | 355 | 250 | 958 | 1028 | 2000 | 600 | 537.90 | 562.43 | |||
273 | 400 | 450 | 250 | 1000 | 1075 | 2000 | 720 | 562.98 | 590.24 | |||
325 | 450 | 500 | 300 | 1075 | 1150 | 2000 | 800 | 584.20 | 612.57 | |||
426 | 560 | 630 | 300 | 1130 | 1215 | 2000 | 870 | 634.68 | 669.41 | |||
530 | 710 | 710 | 300 | 1205 | 1205 | 2000 | 920 | 714.03 | 739.96 | |||
630 | 800 | 800 | 350 | 1300 | 1300 | 2000 | 1000 | 777.89 | 804.86 | |||
720 | 900 | 900 | 400 | 1400 | 1400 | 2000 | 1080 | 850.16 | 878.15 | |||
820 | 1000 | 1100 | 400 | 1450 | 1550 | 2000 | 1200 | 1078.75 | 1146.23 | |||
920 | 1100 | 1200 | 400 | 1230 | 1600 | 2000 | 1250 | 1230.47 | 1301.14 | |||
1020 | 1200 | 1200 | 219 | 315 | 355 | 250 | 1008 | 1008 | 2000 | 600 | 640.57 | 643.16 |
